ASTM A588 steel includes Class A, Class B, Class C, and Class K. The ASTM A588 steel specification is based on the standard specification for high-strength low-alloy structural steel with a lower yield point of up to 50ksi for applications requiring high strength and corrosion resistance.
Product Parameters

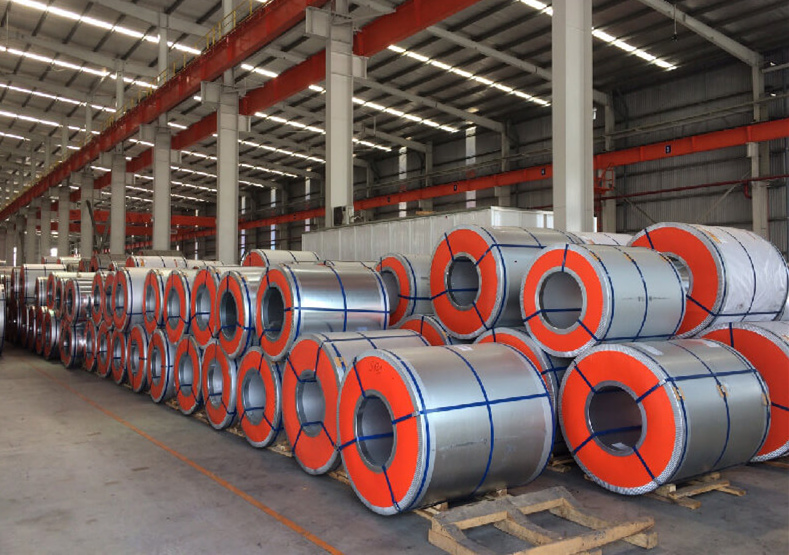

Product Name | A588 Carbon Steel Roll |
Production process | hot rolling,cold rolling |
Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE etc. |
Width | 45mm-2200mm |
Length | Custom size |
Thickness | hot rolling: 2.75mm-100mm cold rolling: 0.2mm-3mm |
Delivery conditions | rolling,Annealing,Quenching,Tempered or standard |
Surface process | Ordinary,Wire drawing,Laminated film |
chemical composition
A588 | C | Mn | P | S | Ni | Si | Cr |
GradeA | ≤ 0.19 | 0.80~1.25 | ≤ 0.04 | ≤ 0.05 | ≤ 0.40 | 0.30~0.65 | 0.40~0.65 |
GradeB | ≤ 0.20 | 0.75~1.35 | ≤ 0.04 | ≤ 0.05 | ≤ 0.50 | 0.15～0.50 | 0.40~0.70 |
GradeC | ≤ 0.15 | 0.80~1.35 | ≤ 0.04 | ≤ 0.05 | 0.25~0.50 | 0.15～0.40 | 0.30~0.50 |
GradeK | ≤ 0.17 | 0.50~1.20 | ≤ 0.04 | ≤ 0.05 | ≤ 0.40 | 0.25～0.50 | 0.40~0.70 |
Mechanical properties
A588 | Tensile Strength | Yield strength | Elongation200mm% | Elongation50 in% |
Thickness≤ 100mm | 485 | 345 | 18 | 21 |
Thickness>100-125mm | 460 | 315 | - | 21 |
Thickness>125-200mm | 435 | 290 | - | 21 |
Physical Performance
Physical Performance | Metric | Imperial |
Density | 7.75g/cc | 0.280 lb/in³ |
Scope of application
ASTM A588 steel is known for its weather resistance. When exposed to external conditions, its corrosion resistance becomes stronger even if it is not painted. ASTM A588 steel has four times the corrosion resistance of carbon steel. The application of ASTM A588 steel is very wide. In addition to its typical application in welded bridges and buildings, this specification is also widely used in railway passenger cars; including transmission towers and telephone towers, trucks, bridges and gusset plates, and housing shells. ASTM A588 steel also maintains a good strength-to-weight ratio, meeting the high strength requirements of carbon steel with less weight.
