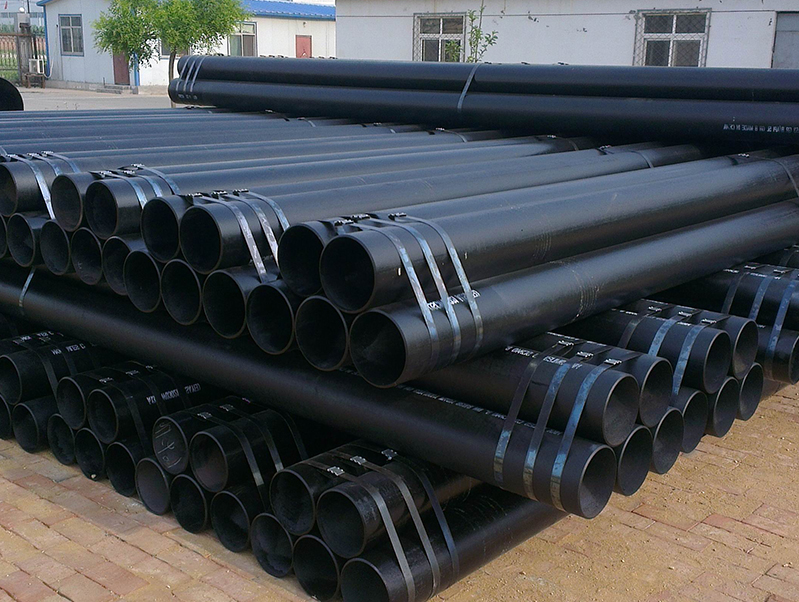

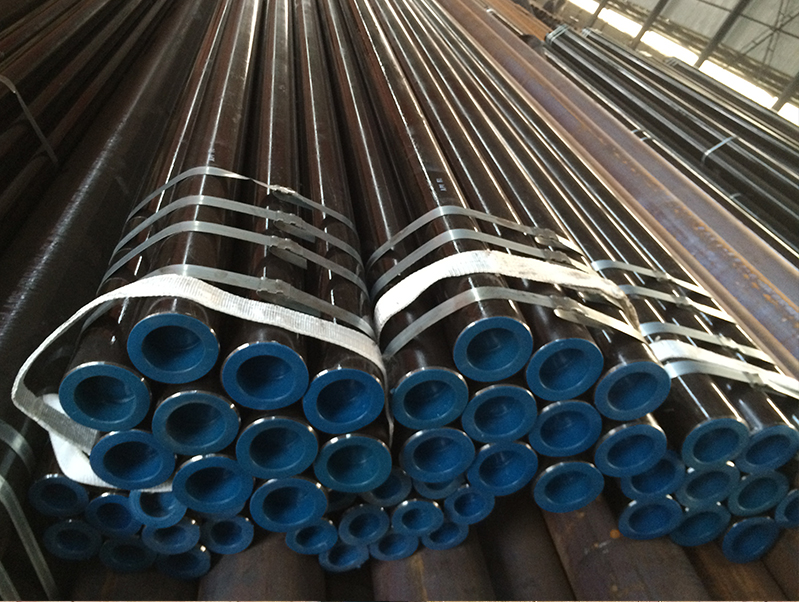

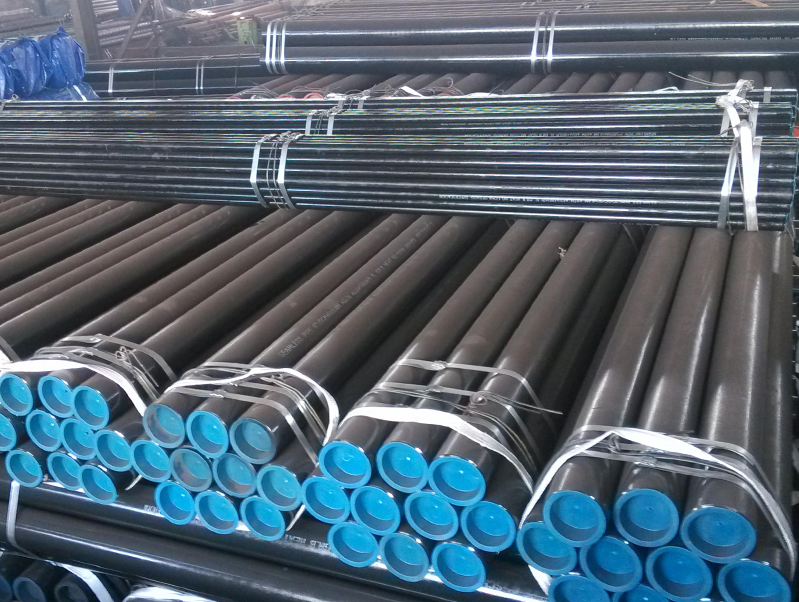

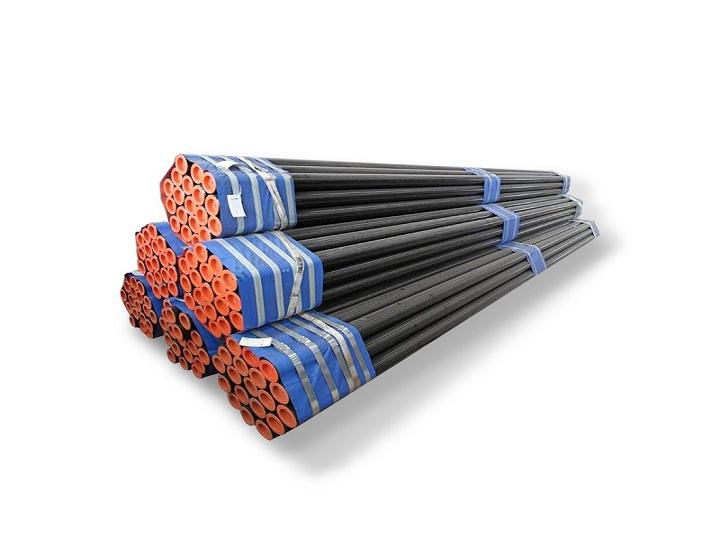

ASTM A53 is a carbon steel alloy that can be used as structural steel or for low pressure piping. ASTM A53 (ASME SA53) carbon steel pipe is a specification covering seamless, welded black and hot-dip galvanized steel pipe from NPS 1/8 "to NPS 26. A53 is suitable for pressure and mechanical applications, as well as for general use in steam, water, gas and air lines.
The A53 pipe has three types (F, E, S) and two grades (A, B).
Type A53F manufactured with furnace butt welds or may have continuous welds (Class A only)
Type A53E with resistance welds (Class A and B)
Type A53S is seamless and is found in Class A and B
Product Parameters
Product Name | A53 Seamless & Welded Carbon Steel Pipe | |
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. | |
Outer diameter | Seamless:1/4"-36" | Welding:21.3mm-3620mm |
Round tube:1/2"-10" | square tube/Rectangular tube:15x15-400x600mm | |
Wall thickness | Seamless:1.25mm-50mm | Welding:1.65mm-65mm |
Length | 3-12 meters, support customization | |
SurfaceProcess | Bright, polished, black | |
Other Services | Machining(CNC), centerless grinding (CG), heat treatment, annealing, pickling, polishing, rolling, forging, cutting, bending, small machining, etc. | |
chemical composition
A53 | Grade | C | Mn | P | S | Cu | Ni | Cr | Mo | V |
TypeS(Seamless) | A | 0.25 | 0.95 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
B | 0.3 | 1.2 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 | |
TypeE (resistance welding) | A | 0.25 | 0.95 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
B | 0.3 | 1.2 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 | |
TypeF(furnace welding) | A | 0.3 | 1.2 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
Mechanical properties
A53 | GradeA | GradeB |
Tensile StrengthMin.psi(MPa) | 48,000(330) | 60,000(415) |
Yield strengthMin.psi(MPa) | 30,000(205) | 35,000(240) |
Physical Performance
Density20°C | modulus of elasticityKn/² mm | coefficient of thermal conductivity20°C | Heat capacity20°C | Resistivity20°C | |||
20C° | 300C° | 400C° | 450C° | ||||
7.85 | 210 | 192 | 184 | 179 | 51 | 461 | 0.20 |
Scope of application
Construction: underground pipeline, underground water, hot water transmission, mechanical processing, bearing sleeve, processing machinery parts, etc.
Electrical: natural gas transmission, hydroelectric fluid pipelines, anti-static pipes for wind farms, etc.
