ASTM A192 is the same as ASME SA-192 and is the standard specification covering seamless carbon steel boiler and superheater tubes of minimum wall thickness for high pressure service.
Product Parameters

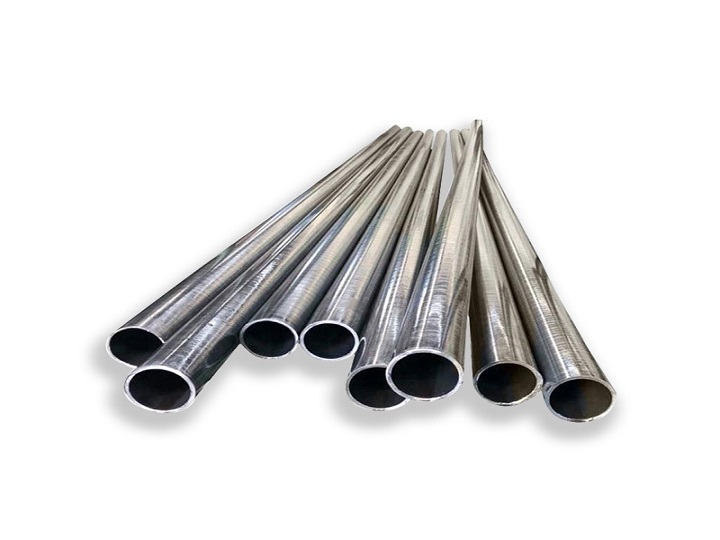

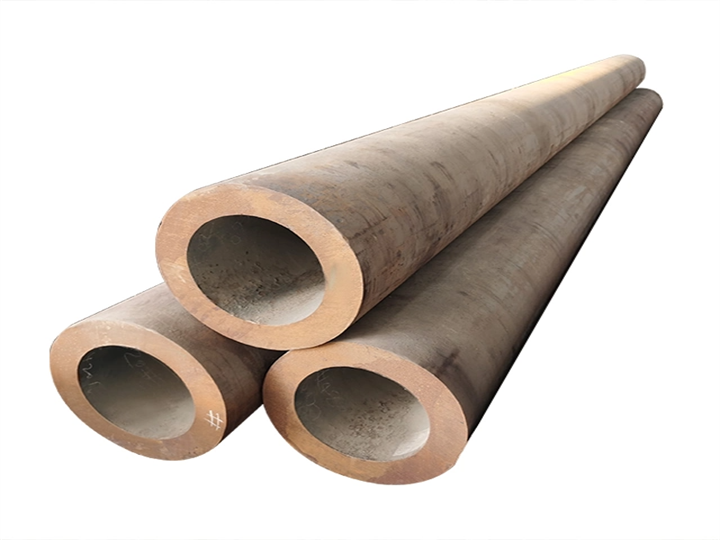

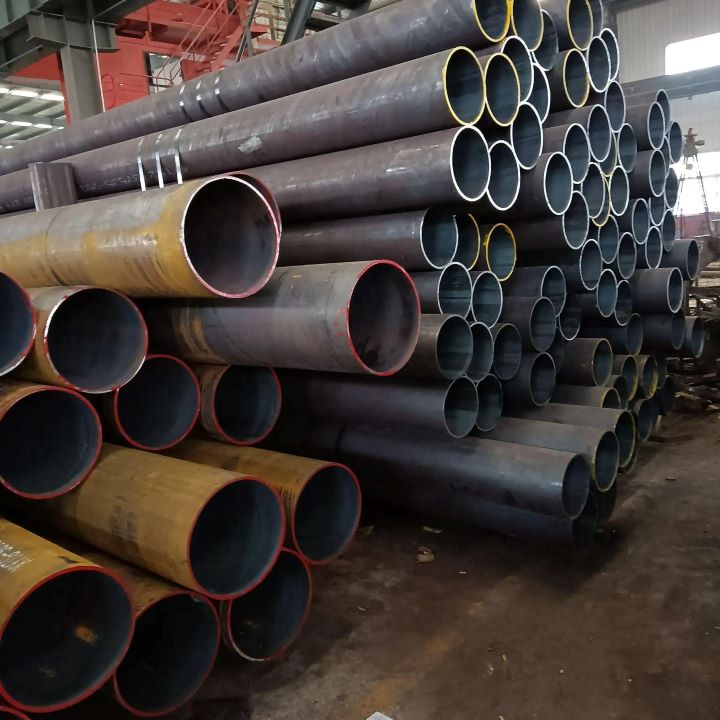

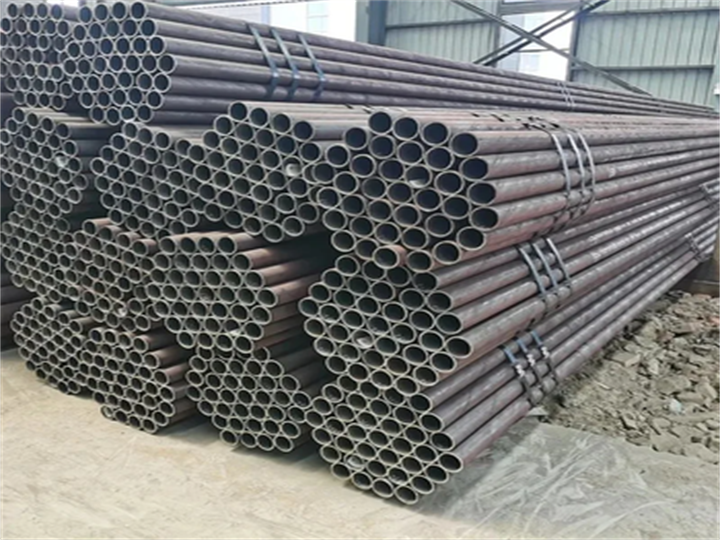

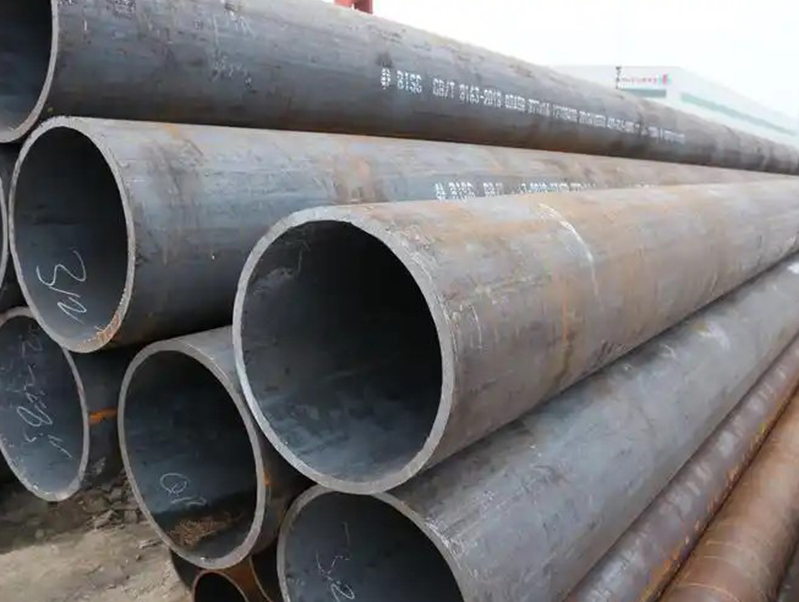

Product Name | A192 seamless carbon steel pipe | |
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. | |
Outer diameter | Seamless:1/4"-36" | Welding:21.3mm-3620mm |
Round tube:1/2"-10" | square tube/Rectangular tube:15x15-400x600mm | |
Wall thickness | Seamless:1.25mm-50mm | Welding:1.65mm-65mm |
Length | 3-12 meters, support customization | |
SurfaceProcess | Bright, polished, black | |
Other Services | Machining(CNC), centerless grinding (CG), heat treatment, annealing, pickling, polishing, rolling, forging, cutting, bending, small machining, etc. | |
chemical composition
C,% | Mn, % | You, % | P, % | S, % |
0.06-0.18 | 0.27-0.63 | 0.25 max | 0.035 max | 0.035 max |
Mechanical properties
Tensile StrengthMPa | Yield strengthMPa | Elongation% | HardnessHB, wt≥ 5.1mm | HardnessHRB, WT＜5.1mm |
325 min | 180 min | 35 min | 137 max | 77 max |
Scope of application
Seamless carbon steel boilers for high pressure, superheater tubes, etc.
