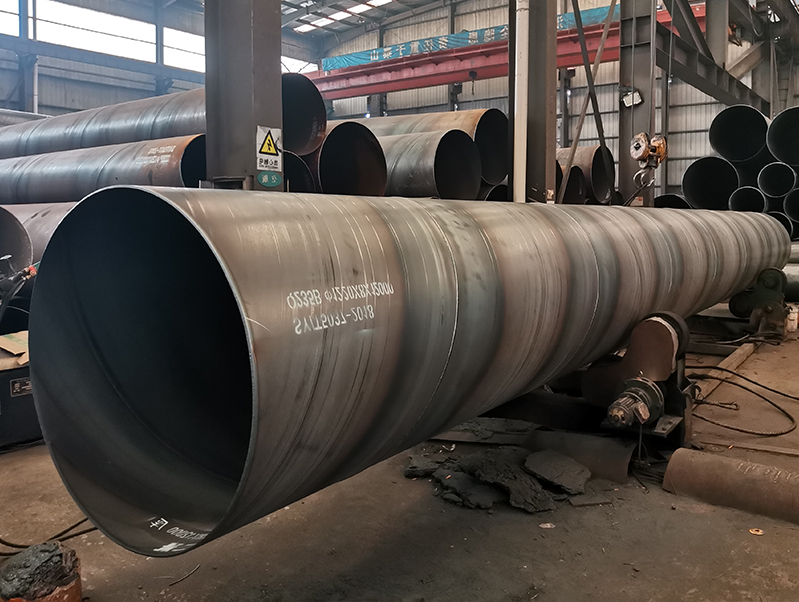

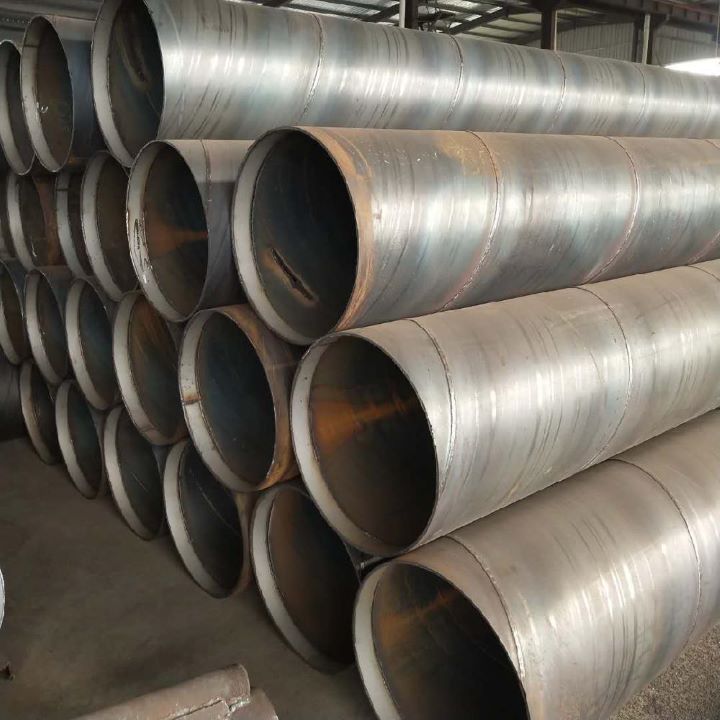

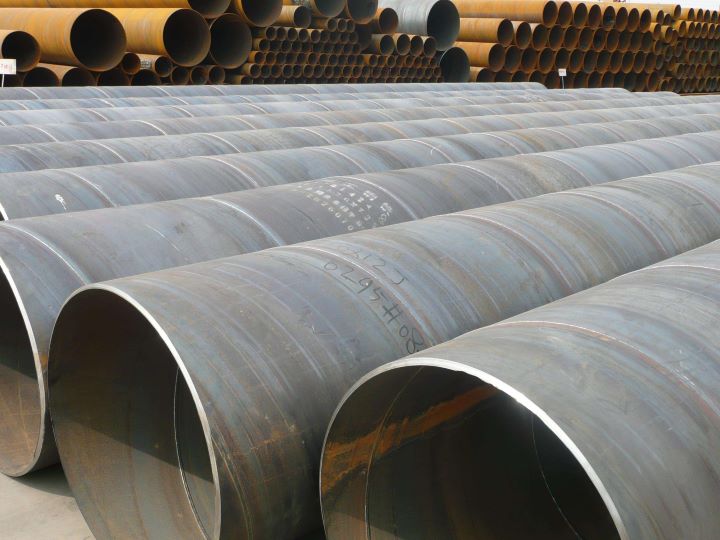

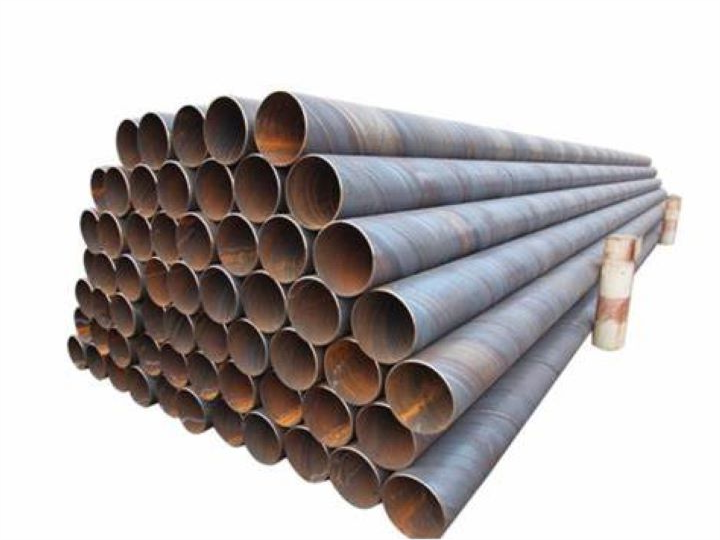

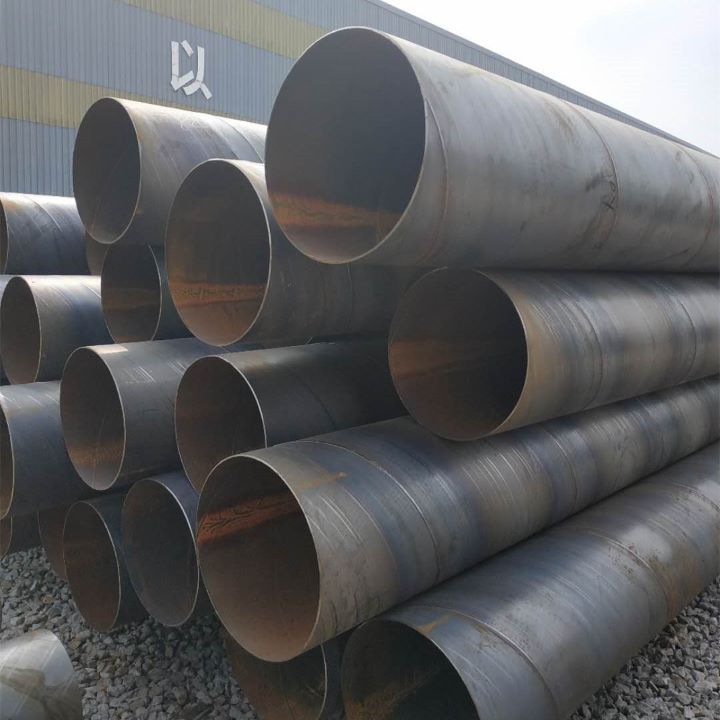

The spiral submerged arc welded pipe is made of hot-rolled steel strip as raw material, and is usually made by constant temperature spiral forming and automatic submerged arc welding. The manufacturing process is to roll the steel strip, make the rolling direction at a certain angle to the center direction of the tube, and then form and weld, so the weld is spiral. Can provide API SPEC 5L steel pipe, GB / T3091,GB / T9711-2011,EN10219,ASTM A252 standard steel pipe.
Product Parameters
Product Name | Spiral submerged arc welded pipe SSAW |
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. |
Outer diameter | 219.1mm-3580mm |
Wall thickness | 3.2mm-25.4mm |
Length | 5.8 meters -12.5 meters, support customization |
Manufacturing Type | spiral welding |
Product material
Standard | Material |
GB/T3091 | Q235B, Q345A, Q345B |
GB/T9711-2011 | L210, L245, L290, L320, L360, L390, L415, L450, L485 |
API 5L PSL1 | Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70, X80 |
API 5L PSL2 | Gr.B, X42, X46, X52, X56, X60, X65, X70, X80 |
EN10217 | P235TR1, P235TR2, P265TR1, P265TR2 |
ASTM A252 | A252 Gr.2 , A252 Gr.3 |
Chemical composition & mechanical properties
Standard | Grade | chemical composition% | Mechanical properties(min) | |||||
C | Si | Mn | P | S | Tensile Strength(Mpa) | Yield strength(Mpa) | ||
API 5CT | h40 | - | - | - | - | 0.030 | 417 | 417 |
J55 | - | - | - | - | 0.030 | 517 | 517 | |
K55 | - | - | - | - | 0.300 | 655 | 655 | |
API 5L PSL1 | A | 0.22 | - | 0.90 | 0.030 | 0.030 | 335 | 335 |
B | 0.26 | - | 1.20 | 0.030 | 0.030 | 415 | 415 | |
X42 | 0.26 | - | 1.30 | 0.030 | 0.030 | 415 | 415 | |
X46 | 0.26 | - | 1.40 | 0.030 | 0.030 | 435 | 435 | |
X52 | 0.26 | - | 1.40 | 0.030 | 0.030 | 460 | 460 | |
X56 | 0.26 | - | 1.40 | 0.030 | 0.030 | 490 | 490 | |
X60 | 0.26 | - | 1.40 | 0.030 | 0.030 | 520 | 520 | |
X65 | 0.26 | - | 1.45 | 0.030 | 0.030 | 535 | 535 | |
X70 | 0.26 | - | 1.65 | 0.030 | 0.030 | 570 | 570 | |
API 5L PSL2 | B | 0.22 | 0.45 | 1.20 | 0.025 | 0.015 | 415 | 415 |
X42 | 0.22 | 0.45 | 1.30 | 0.025 | 0.015 | 415 | 415 | |
X46 | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | 435 | 435 | |
X52 | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | 460 | 460 | |
X56 | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | 490 | 490 | |
X60 | 0.12 | 0.45 | 1.60 | 0.025 | 0.015 | 520 | 520 | |
X65 | 0.12 | 0.45 | 1.60 | 0.025 | 0.015 | 535 | 535 | |
X70 | 0.12 | 0.45 | 1.70 | 0.025 | 0.015 | 570 | 570 | |
X80 | 0.12 | 0.45 | 1.85 | 0.025 | 0.015 | 625 | 625 | |
ASTM A53 | A | 0.25 | 0.10 | 0.95 | 0.050 | 0.045 | 330 | 330 |
B | 0.30 | 0.10 | 1.20 | 0.050 | 0.045 | 415 | 415 | |
ASTM A252 | 1 | - | - | - | 0.050 | - | 345 | 345 |
2 | - | - | - | 0.050 | - | 414 | 414 | |
3 | - | - | - | 0.050 | - | 455 | 455 | |
EN10217-1 | P195TR1 | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 320 | 320 |
P195TR2 | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 320 | 320 | |
P235TR1 | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 | |
P235TR2 | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 | |
P265TR1 | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
P265TR2 | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
EN10217-2 | P195GH | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 320 | 320 |
P235GH | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 | |
P265GH | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
EN10217-5 | P235GH | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 |
P265GH | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
EN10219-1 | S235JRH | 0.17 | - | 1.40 | 0.040 | 0.040 | 360 | 360 |
S275JOH | 0.20 | - | 1.50 | 0.035 | 0.035 | 410 | 410 | |
S275J2H | 0.20 | - | 1.50 | 0.030 | 0.030 | 410 | 410 | |
S355JOH | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | 470 | 470 | |
S355J2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | 470 | 470 | |
S355K2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | 470 | 470 | |
Scope of application
Petroleum and natural gas industry, chemical industry, power industry, flammable liquid and incombustible liquid pipeline and building structure, water supply and drainage engineering, urban construction.
