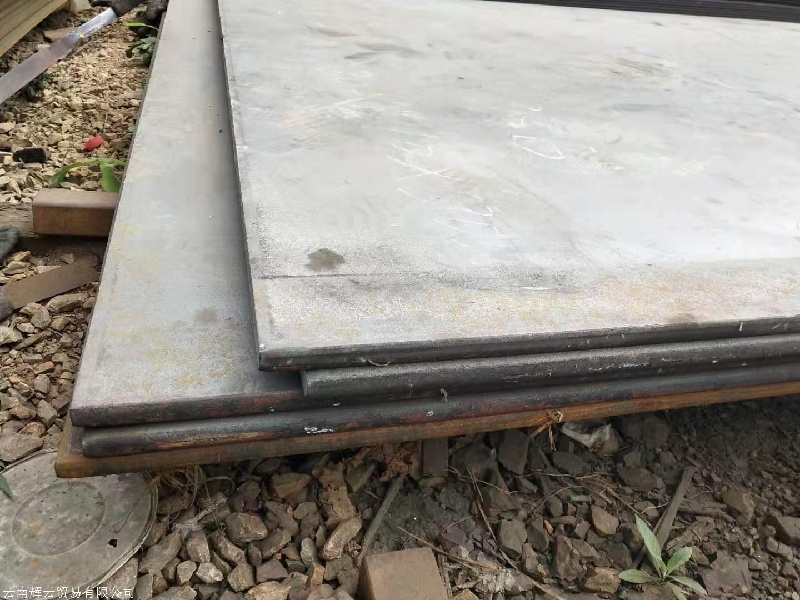

ASTM A533 Boiler vessel plates are manganese-molybdenum and manganese-molybdenum-nickel alloy steel plates suitable for welding pressure vessels. Often with quenching and tempering heat treatment, that is, quenching and tempering state supply. ASTM A533 boiler vessel steel is available in five different strength grades: Class A, Class B, Class C, Class D, and Class E. There are three levels of each category: level 1, level 2 and level 3.
Product Parameters
Product Name | A533pressure vessel steelPlate |
Production process | hot rolling,cold rolling |
Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE etc. |
Width | 100mm-3000mm |
Length | 1m-12m,or customized size |
Thickness | 0.1mm-400mm |
Delivery conditions | rolling,Annealing,Quenching,Tempered or standard |
Surface process | Ordinary,wire drawing,Laminated film |
chemical composition
A533 | Class A | Class B | Class C | Class D | Class E | |
C | 0.25 | 0.25 | 0.25 | 0.25 | 0.20 | |
Mn | smelting analysis | 1.15~1.50 | 1.15~1.50 | 1.15~1.50 | 1.15~1.50 | 1.15~1.70 |
Finished product analysis | 1.07~1.62 | 1.07~1.62 | 1.07~1.62 | 1.07~1.62 | 1.04~1.84 | |
P | 0.025 | 0.025 | 0.025 | 0.025 | 0.020 | |
S | 0.025 | 0.025 | 0.025 | 0.025 | 0.015 | |
Si | smelting analysis | 0.15~0.40 | 0.15~0.40 | 0.15~0.40 | 0.15~0.40 | 0.15~0.40 |
Finished product analysis | 0.13~0.45 | 0.13~0.45 | 0.13~0.45 | 0.13~0.45 | 0.13~0.45 | |
Mo | smelting analysis | 0.45~0.60 | 0.45~0.60 | 0.45~0.60 | 0.45~0.60 | 0.25~0.60 |
Finished product analysis | 0.41~0.64 | 0.41~0.64 | 0.41~0.64 | 0.41~0.64 | 0.21~0.64 | |
Ni | smelting analysis | … | 0.40~0.70 | 0.70~1.00 | 0.20~0.40 | 0.60~1.00 |
Finished product analysis | … | 0.37~0.73 | 0.67~1.03 | 0.17~0.43 | 0.57~1.03 | |
Cr | smelting analysis | … | … | … | … | 0.60 |
Finished product analysis | … | … | … | … | 0.64 |
Mechanical properties
A533 | Tensile StrengthKsi(MPa) | Yield strengthKsi(MPa) | Elongation,gauge length2 in.[50 mm],% |
Grade1 | 80-100[550~690] | 50[345] | 18 |
Grade2 | 90-115[620~795] | 70[485] | 16 |
Grade3 | 100-125[690~860] | 83[570] | 16 |
Physical Performance
Physical Performance | Metric | Imperial |
Density | 7.7-8.03 g/cm3 | 0.278-0.290 lb/in3 |
Scope of application
ASTM A533 boiler vessel plate has excellent low temperature impact toughness and mechanical properties, and is usually used under low temperature conditions. ASTM A533 boiler vessel plate is widely used in low temperature separation processing, liquefied gas storage and other fields, such as large vacuum low temperature liquefied natural gas (LNG) storage equipment.
