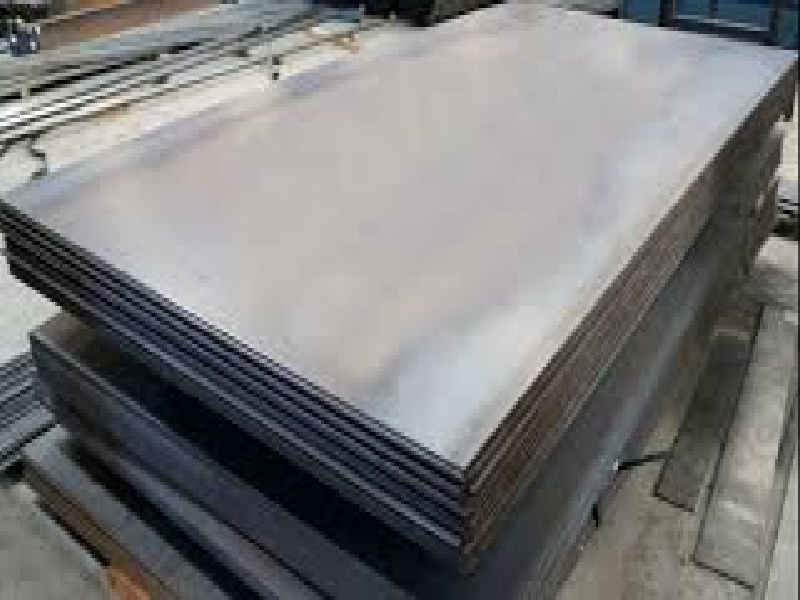

DIN 17155 pressure vessel steel plate is boiler and pressure vessel steel. In addition to boilers and pressure vessels, DIN 17155 pressure vessel steel is also used to manufacture high-temperature liquid transportation pipelines.
Product Parameters
Product Name | DIN 17155pressure vessel steelPlate |
Production process | hot rolling,cold rolling |
Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE etc. |
Width | 100mm-3000mm |
Length | 1m-12m,or customized size |
Thickness | 0.1mm-400mm |
Delivery conditions | rolling,Annealing,Quenching,Tempered or standard |
Surface process | Ordinary,Wire drawing,Laminated film |
chemical composition
DIN 17155 | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo |
15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.90 | 0.035 | 0.03 | 0.25 | 0.3 | 0.3 | 0.25-0.35 | |
13CrMo44 | 0.08-0.18 | 0.10-0.35 | 0.40-0.10 | 0.035 | 0.03 | 0.70-1.10 | 0.3 | 0.4-0.6 | ||
17Mn4 | 0.14-0.20 | 0.4 | 0.90-1.40 | 0.035 | 0.03 | 0.02 | 0.25 | 0.3 | 0.3 | 0.1 |
10CrMo9-10 | 0.06-0.15 | 0.5 | 0.40-0.70 | 0.035 | 0.03 | 2.00-2.50 | 0.3 | 0.9-1.0 | ||
19Mn6 | 0.2 | 0.5 | 0.90-1.70 | 0.03 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 |
HI | 0.16 | 0.35 | 0.40/1.20 | 0.03 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 |
HII | 0.2 | 0.35 | 0.50-1.30 | 0.035 | 0.03 | 0.02 | 0.25 | 0.3 | 0.3 | 0.1 |
Scope of application
DIN 17155 pressure vessel steel plates are widely used in gas, petrochemical and other industries, especially in the manufacture of boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic supports, etc.
Equivalent Material
DIN 17155 | Material No. | EN 10028-2 | UNI 5869 | BS 1501 | A 36087 | ASTM | JIS G3115 |
HI | 1.0345 | P235GH | Fe 360 - 1KW | 161 Gr. 360 / | A 37 RCI | A 285 Gr. C-A 414 Gr. C/ | SPV 24 |
HII | 1.0425 | P265GH | Fe 410 - 1KW | 161 Gr. 400 / | A 42 RCI | A 414 Gr. E / | |
17Mn4 | 1.0481 | P295GH | Fe 460 - 1KW | 224 Gr. 490 | A 47 RCI | A 414 Gr. F / | SPV 32 |
19Mn6 | 1.0473 | P355GH | Fe 510 - 1KW | A 52 RCI | A 414 Gr. G | SPV 36 | |
15Mo3 | 1.5415 | 16Mo3 | 15 Mo 3 | 1503 - 243 B | 16Mo3 | A 204 Gr. B | |
13CrMo44 | 1.7335 | 13CrMo4-5 | 14 CrMo 4.5 | 620 Gr. 27 | 14 CrMo 4.5 | A 387 Gr. 12 | |
10CrMo910 | 1.7380 | 10CrMo9-10 | 622 Gr. 31 | A 387 Gr. 22 |
